Current Meter Tester High Low Voltage Current Measurement Instrument Wireless H/L Voltage Clamp Meter with Range 0mA to 1200A Resolution 1mA CT Size Φ48mm 4 Digital LCD Display

YFYIQI Current Meter Tester High Low Voltage Current Measurement Instrument Wireless H/L Voltage Clamp Meter with Range 0mA to 1200A Resolution 1mA CT Size Φ48mm 4 Digital LCD Display Specification: Function: H/L voltage AC current measurement Power Supply:DC 6V（1.5V AAAx4） (not included) Test Mode:Clamp CT, integration method Transmission Mode: 433Hz wireless transmission,transmission distance 30M Display Mode:4 digital LCD display, backlight function, suitable for dim place LCD Size: 47mm×28.5mm Meter Size:Detector: 76mm×255mm×31mm; Receiver: 78mm×165mm×42mm CT Size: Φ48mm Sampling Rate:2 times/second Measurement Range:0mA～1200A (50/60Hz automatic) Max Resolution:1mA Shift:0mA～1200A full-automatic Test Accuracy (23℃±5℃，below80%RH): 0mA～99.9A:±1%±5dgt 100A～599A:±1.5%±5dgt 600A～1200A: ±2%±5dgt Data Storage:99 groups, Line Voltage: Below 110kV current test , operate with insulation rods Data Hold: Press HOLD key to hold data in test mode Data Access Auto Shut Down:15 minutes after boot up, Battery Voltage: When battery voltage is lower than 4.8V Meter Weight: 3630g (include insulation rod) Working Environment: -10℃~50℃；below 80%rh Store Environment: -10℃~60℃；below 70%rh Interference: No interference of 315MHz and 433MHz same frequency signals Insulation Rod Size:Φ32mm，1m/pcs（5pcs） Insulation Strength:AC110kV/rms（all 5PCS insulation rod connect, between the two ends）

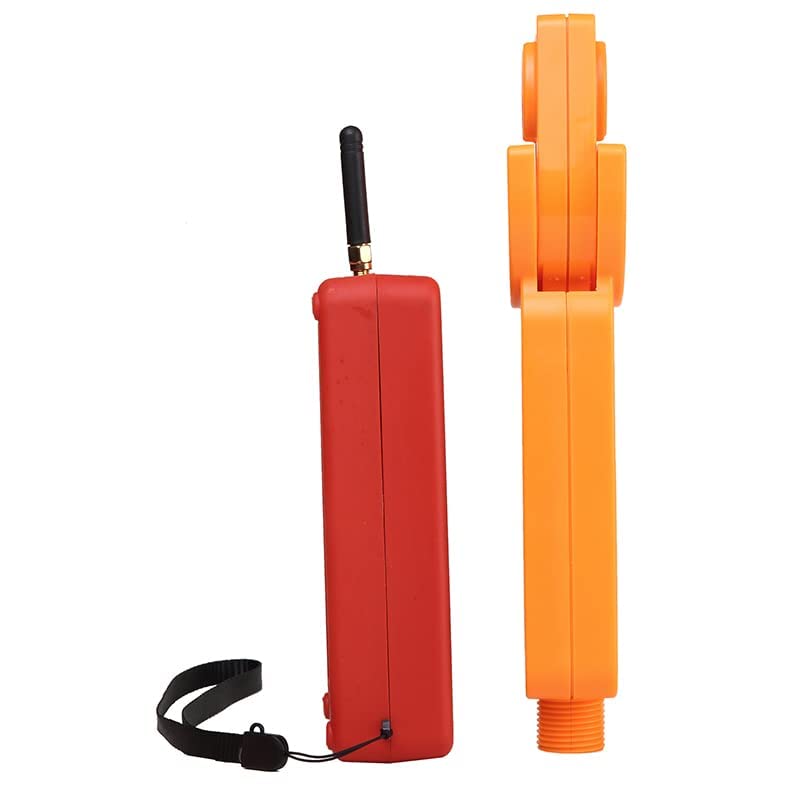

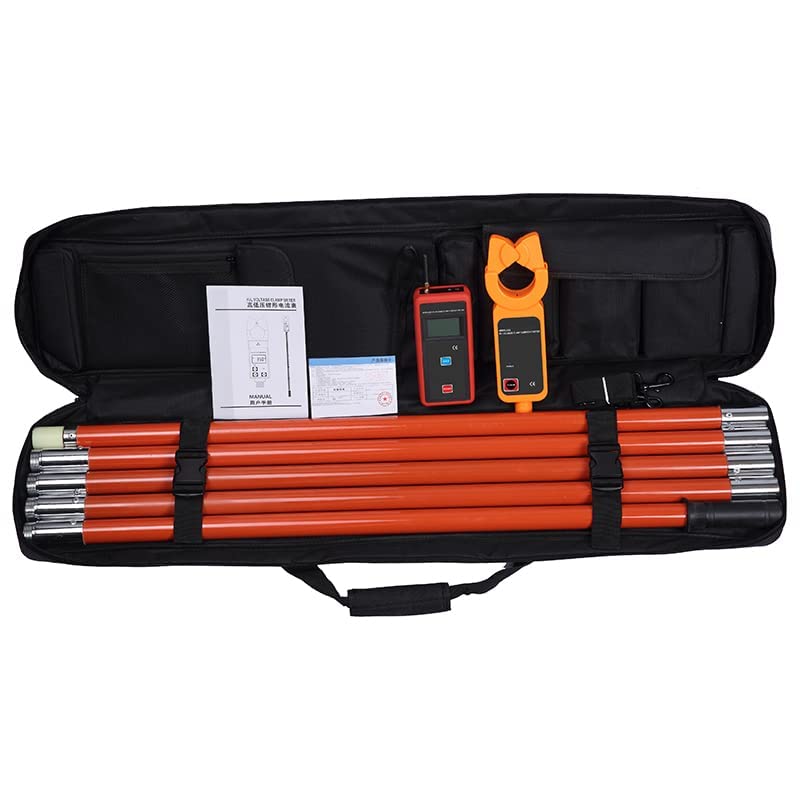

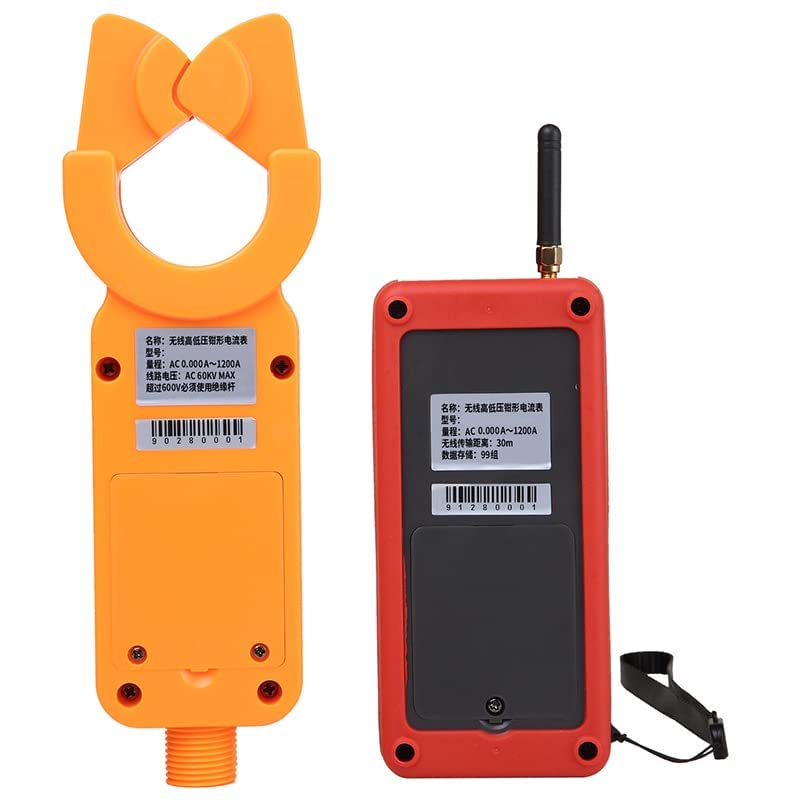

• It is specially designed and manufactured for measuring high voltage current, the tester adopts CT technology and mask digital integration technology, the instrument is composed of special clamp current meter and high voltage insulation rod, equipped with wireless receivers, which can receive the tested data within 30M straight-line distance. If not use insulation rod, which can be used as high accuracy low voltage clamp current meter.
• The innovative integrated design of the clamp and the guide area ensures the high accuracy, high reliability and high stability of year round uninterrupted testing.
• It connects with insulation rod which can use for high voltage line current mesurement of the wire with insulation skin below 110KV online current measurements also with peak hold data hold and data storage and so on others functions the special clamp current meter convenient to clamp or withdraw the tested wire operate by push or pull back the insulation rod, save time and convenient.
• It is widely used in substations power plants,and industrial and mining enterprises, inspection stations,electrical maintenance departments for current detection and electrical field operations. It also can replace the H/L voltage transformation ratio tester, which can measure the H/L voltage current of the primary circuit and the secondary circuit respectively and then calculate the votage transformation ratio.
• The insulation rod is light, has the characteristics of moisture proof, high temperature resistance,impact resistance bending resistance, high insulation, scalable and so on.
